EBE 65 – Strength and Security in a Slim Format
EBE 65 solves one of the most challenging façade design issues: how to ensure that a window does not disrupt the continuity of the façade. In the EBE system, the sash is recessed inward, creating a flat, seamless surface together with the frame when viewed from the outside. The result? A façade without joints, interruptions, or shadows – pure geometry. At the same time, EBE 65 features a thermal break and EN 14351-1 certification, meeting the highest European technical standards.
External system
Thermally insulated system with thermal break
KEY FEATURES
Installation depth: 65 mm- Glass thickness: up to 48 mm
- Thermal break: polyamide + polyurethane (structural)
- Certification: EN 14351-1
- External surface of sash and frame in one plane – perfect façade continuity
- Internal overlap: the sash is visible from the inside and invisible from the outside

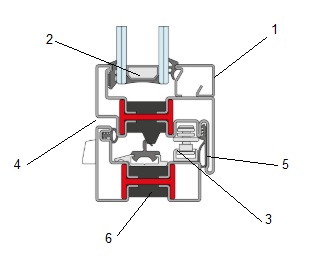

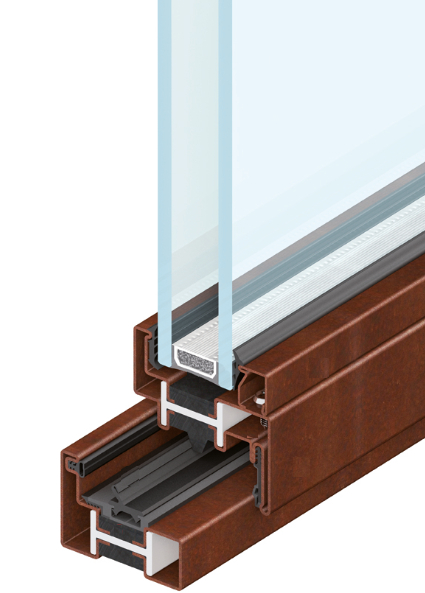

PROFILE STRUCTURE
1. Glazing bead
2. Glazing up to 48 mm thick
3. Hardware groove
4. Flush on the exterior, rebated on the interior
5. Open joint with triple sealing
6. Structural thermal break made of polyurethane and polyamide
AVAILABLE MATERIALS
EBE 65 is a system for architects who see the façade as a complete composition – every profile and every line must be exactly where it belongs. Nothing is left to chance.
Customize Your System
Choose the perfect glazing bead finish and explore the available hardware options:

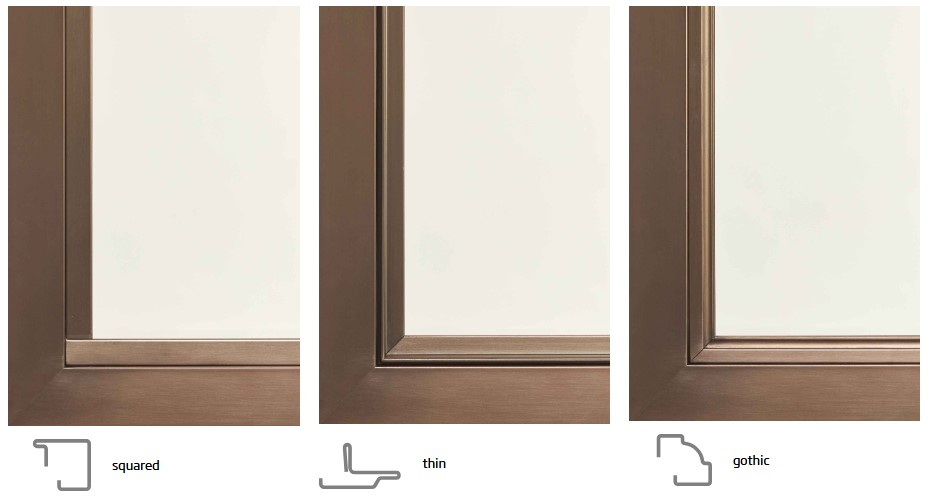

Glazing Beads as a Design Element
Available in square and triangular profiles, finished to match the frame

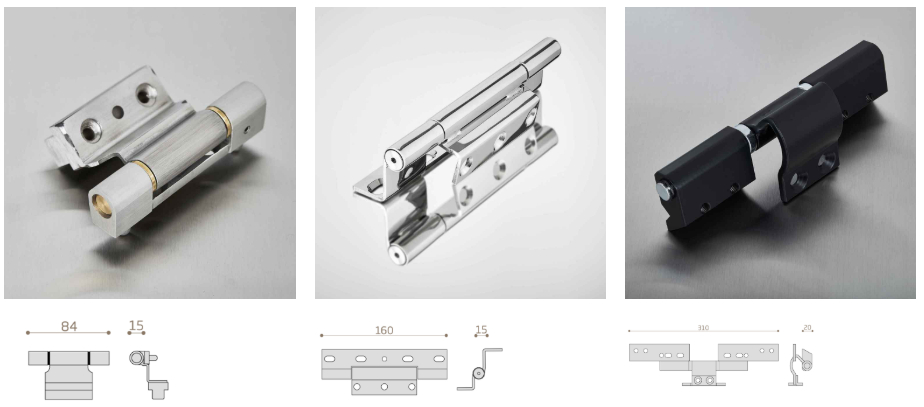

Slim, Geometric Hinges Visually and Color-Matched with the Frame
Available hinge types: two-part and three-part
Vitruvio Handles
Tronca, Quadra, Tonda, Ovale – geometric steel jewellery
