OS2 65 – Architectural Versatility
OS2 65 is an evolution of the minimalist concept, enhanced with improved performance characteristics. Thanks to its thermal insulation and slim sightlines, it enables the creation of large glazed surfaces while maintaining the elegance of slender steel profiles. It is the perfect bridge between tradition and modernity, equally suited to heritage renovations and contemporary residences.
External system
Thermally insulated system with thermal break
KEY FEATURES
Installation depth: 65 mm- More than 40 profiles available – solutions for every architectural and functional requirement
- Glass thickness: 24–35 mm (up to 40 mm)
- Double thermal break: polyamide and polyurethane
- Two façade composition variants: 65.1 and 65.2 – sash configurations with different sightlines (different visible widths of sash profiles and floating mullions are possible)
Variant 65.1:
Offset glazing line, meaning there is no flush surface between the glass installed in the opening sash and the glass fixed directly in the frame.
Variant 65.2:
Possibility to achieve identical profile sightlines for opening sashes and fixed glazing. Flush glazing surfaces between opening elements and fixed glazing.
Regardless of whether the element is an opening window (sash) or fixed glazing, the profiles appear identical from the outside. This creates a harmonious façade design without visible differences in frame widths. The glazing in the fixed and opening sections lies in the same plane, eliminating offsets and emphasizing the modern, minimalist character of the construction.

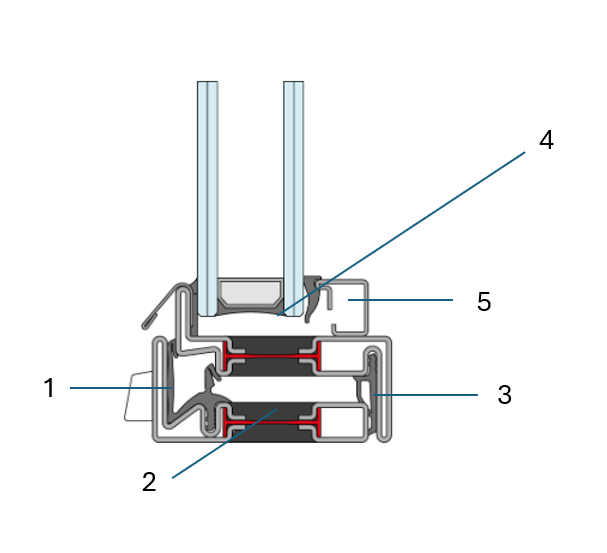

PROFILE STRUCTURE
1. External gasket
2. Thermal break
3. Internal gasket
4. Glazing with a thickness of up to 40 mm
5. Glazing bead
AVAILABLE MATERIALS
OS2 65 combines advanced thermal engineering with the aesthetics of precision metal craftsmanship – a system designed for projects where energy efficiency and design go hand in hand.
Customize Your System
Choose the perfect glazing bead finish and explore the available hardware options:
Glazing Beads as a Design Element
Available in square and triangular profiles, finished to match the frame
Slim, Geometric Hinges Visually and Color-Matched with the Frame
Available hinge types: two-part and three-part
Vitruvio Handles
Tronca, Quadra, Tonda, Ovale – geometric steel jewellery
