Dutch Windows at Awilux

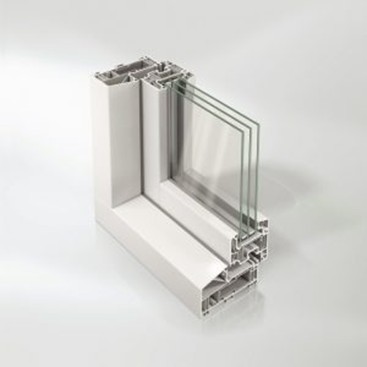

The Schüco LivIng Variant system is an innovative 6- or 7-chamber system based on the Schüco LivIng system and fully compatible with it. Thanks to its angular shape, it perfectly replicates the appearance of a classic wooden window. Our offer includes frame profiles with a 15° inclination. From a technical perspective, the LivIng Variant impresses with a construction depth of 120 mm and a sophisticated chamber layout, ensuring excellent thermal insulation. This system is suitable not only for the Dutch market but also for any location where traditional architecture is combined with modern accents.
- 120 mm installation depth, suitable for both new buildings and renovations
- 82 mm sash depth
- Distinctive contours with a soft, pronounced radius and inclined surface (15° for outer frames and T-profiles)
- Thermal transmittance coefficient for the frame: Uf = 1.1 W/m²K
- 8 mm ventilation overlap minimizing heat loss
- High-quality functional EPDM gaskets ensuring protection against noise and adverse weather conditions
- Slim frames providing maximum light access and emphasizing the sleek appearance of the window
Installation depth 120 mm
Number of chambers 6-7
Glazing package Ug=0,5
Permeation coefficient Uw=1,1*
Fittings Winkhaus
*for the reference window 1230x1480 mm
